Custom Shot Blasting Machine:Rotary Table Shot Blasting Machine

Versatile and highly adaptable shot blasting solutions designed for diverse workpieces, from small-batch sampling to high-volume industrial production.

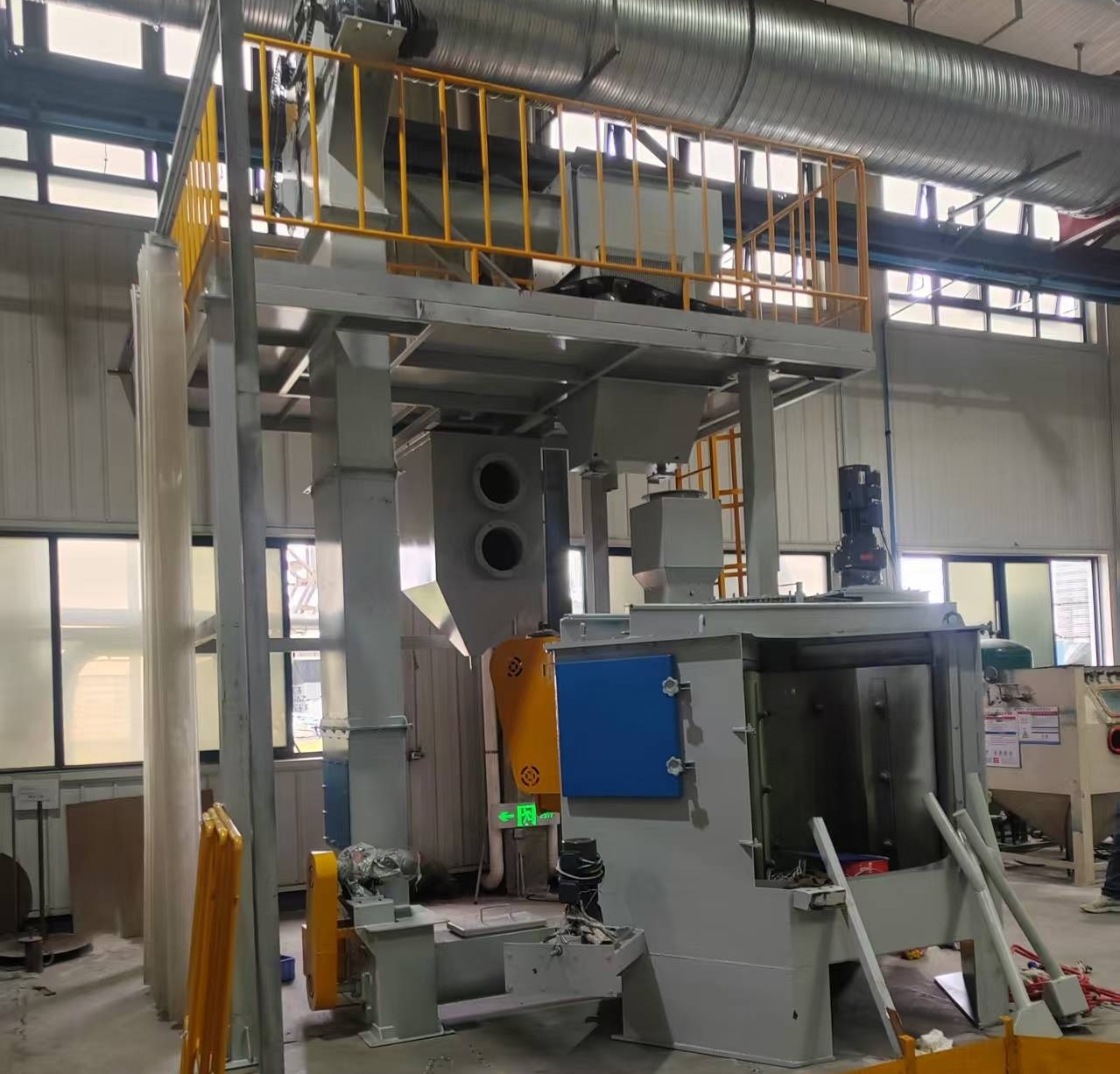

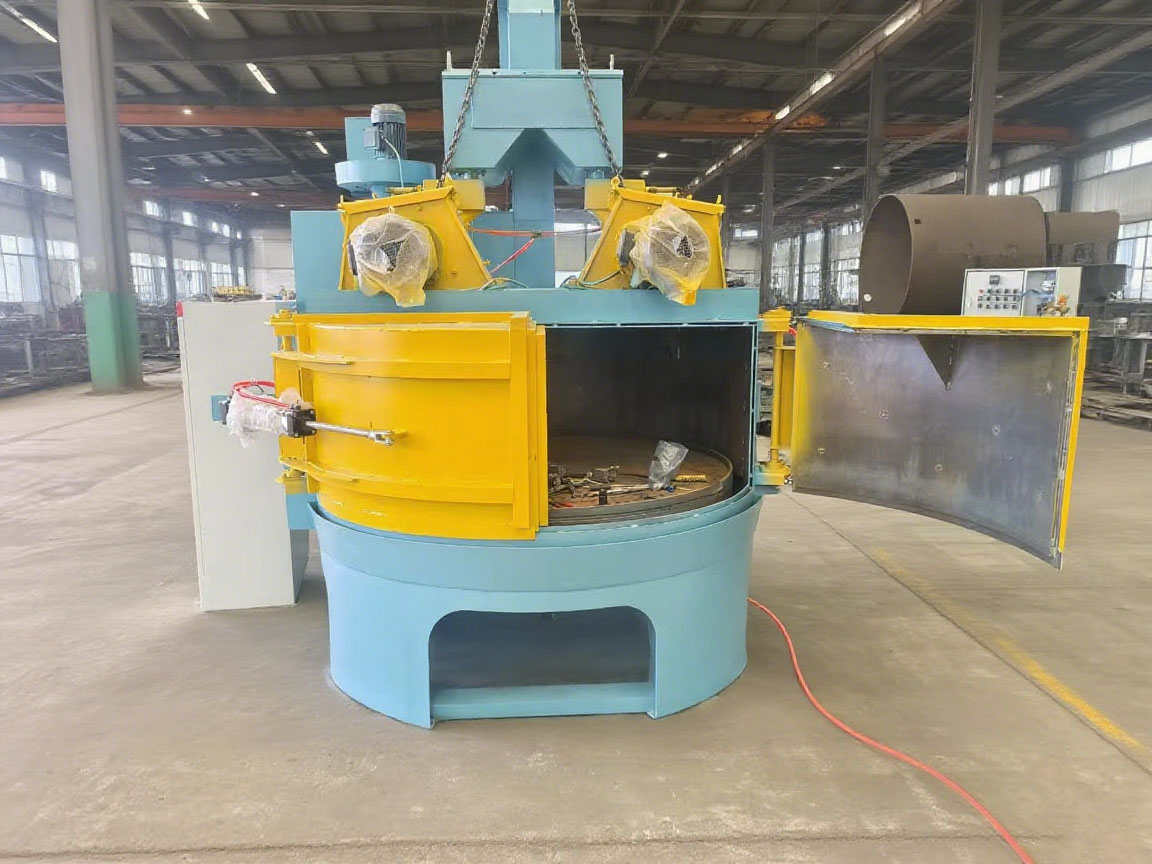

Qingdao Jinwo Custom Rotary Table Shot Blasting Machine for Versatile Workpiece Cleaning
20+ Years
Engineering Team Experience

boltQuick Answer

The Rotary Table Shot Blasting Machine batch-cleans flat, thin-walled and collision-sensitive workpieces that cannot be tumbled. Parts sit on a rotating table and pass frequency-controlled blast wheels placed at several angles, giving over 98% shot coverage with no dead zones and no damage or deformation. Three standard models cover turntable diameters of 1200–2500mm with 400–1000kg loading capacity and 17.3–35.2kW of power, available as single, double or multi-station designs.

Turntable diameter
1200 – 2500 mm
Loading capacity
400 – 1000 kg
Shot coverage
> 98%
Stations
Single / double / multi

Product Features

maximize

Multi-Specification Dimensions

Adaptable to diverse scenarios. Available in Single, Double, and Multi-Table designs. Standard table diameters 1200mm, 1600mm and 2500mm; custom sizes up to φ5000mm.

settings

Matching Parameters

Equipped with 1 or 2 high-efficiency blast wheels. Abrasive flow per wheel ranges from 160 to 250 kg/min.

layers

Workpiece Compatibility

Handles workpieces up to 1000×500×250mm on the standard Q3525; custom chamber and turntable sizes accommodate larger castings, forgings and stamping parts.

view_in_ar

Custom Blasting Design

Wraparound or symmetrical layout of blast wheels. Projection angles accurately calibrated between 10° and 80°.

settings_input_component

Electrical Adaptation

Supports global voltage standards. Integrated with Siemens or Mitsubishi PLC for automated operation.

filter_alt

Environmental Dust Collection

Custom dust extraction optimized for machine specs. Dust emission concentrations stably below 10 mg/m³.

sync_alt

Abrasive Recovery System

Fully enclosed, multi-stage closed-loop recovery. Accurately filters qualified abrasives from debris.

support_agent

One-Stop Service

Comprehensive 'Turnkey' experience, including custom design, professional installation, and training.

Technical Parameters

Three standard models from Q3512 to Q3525, with turntable diameters of 1200mm, 1600mm and 2500mm. Larger diameters are available on request.

ModelQ3512Q3516Q3525
Size of cleaning chamberφ1350×560mmφ1750×860mmφ2654×560mm
Size of cleaning workpiece600×250×250mm800×350×350mm1000×500×250mm
Turntable loading capacity400 kg600 kg1000 kg
Turntable diameterΦ1200 mmΦ1600 mmΦ2500 mm
Abrasive flow rate200 kg/min2×160 kg/min2×250 kg/min
Blast wheel power11 kW7.5×2 kW15×2 kW
Elevator lifting capacity15t/h25t/h30t/h
Separator separating capacity15t/h25t/h30t/h
Abrasive first loading quantity400kg600kg1500kg
Dust extraction air volume2800m³/h3600m³/h5200m³/h
Total power (excl. dust collector)17.3kW26kW35.2kW

Values are reference figures for standard configurations. Chamber size, turntable diameter and blast intensity can be adapted to your workpiece and throughput requirements.

Technical Specifications of Custom Rotary Table Shot Blasting Machine

Need Custom Specs?

Our engineering team specializes in non-standard solutions. We can adapt dimensions, blasting intensity, and material handling to your workflow.

Consult Our Engineers arrow_forward

CAD Models

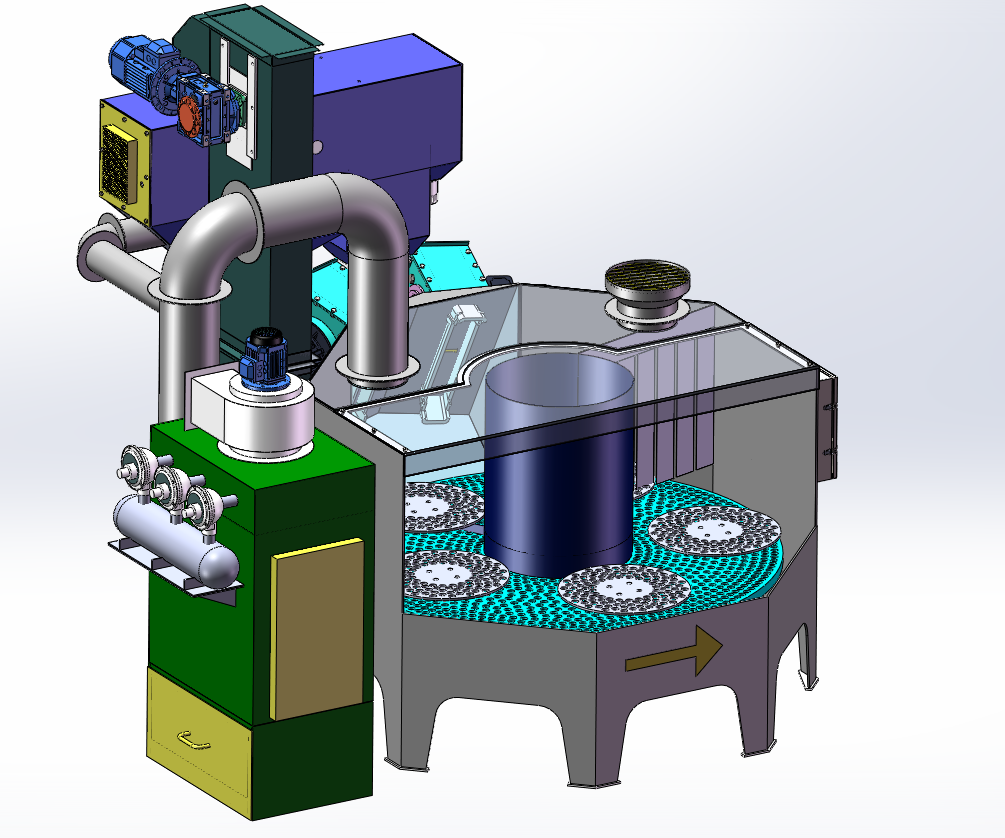

Custom Rotary Table Shot Blasting Machine CAD Model: Double Rotary Table Design - CAD 1 by Jinwo Machinery

Double Rotary Table Design - CAD 1

Technical Visualization

Custom Rotary Table Shot Blasting Machine CAD Model: Double Rotary Table Design - CAD 2 by Jinwo Machinery

Double Rotary Table Design - CAD 2

Technical Visualization

Frequently Asked Questions

What is a rotary table shot blasting machine used for?expand_more

It batch-cleans small and medium workpieces that cannot be tumbled: flat, thin-walled or collision-sensitive parts such as discs, rings, covers, flanges, gears, wheel hubs, connecting rods, diaphragm springs and box-type castings. It removes sand, oxide scale and other attachments, and applies surface strengthening at the same time. Typical users are foundries, automotive and agricultural machinery plants, and heat treatment workshops handling mixed work.

How does the table work and why is coverage so uniform?expand_more

Workpieces sit on a rotating table and travel in a circle past frequency-controlled blast wheels placed at several angles. Because the part rotates at constant speed while the wheels fire from fixed directions, every point on the surface receives the same exposure — shot coverage exceeds 98%, with no dead zones at the edges or in recesses that a fixed-position blast cannot reach.

Will the workpieces be damaged or deformed?expand_more

No. The parts are not tumbled or thrown against each other; they rest on the table and rotate with it. There is no collision between workpieces and no mechanical handling shock, so thin-walled and fragile parts keep their form. This is the main reason the rotary table is chosen over a tumble belt for parts where dimensional accuracy matters.

What sizes and weights can it handle?expand_more

Three standard models cover chamber sizes from φ1350×560mm to φ2654×560mm, with turntable diameters of 1200mm, 1600mm and 2500mm, and loading capacity from 400kg to 1000kg. Maximum workpiece envelope ranges from 600×250×250mm on Q3512 to 1000×500×250mm on Q3525. Larger tables are available as custom builds.

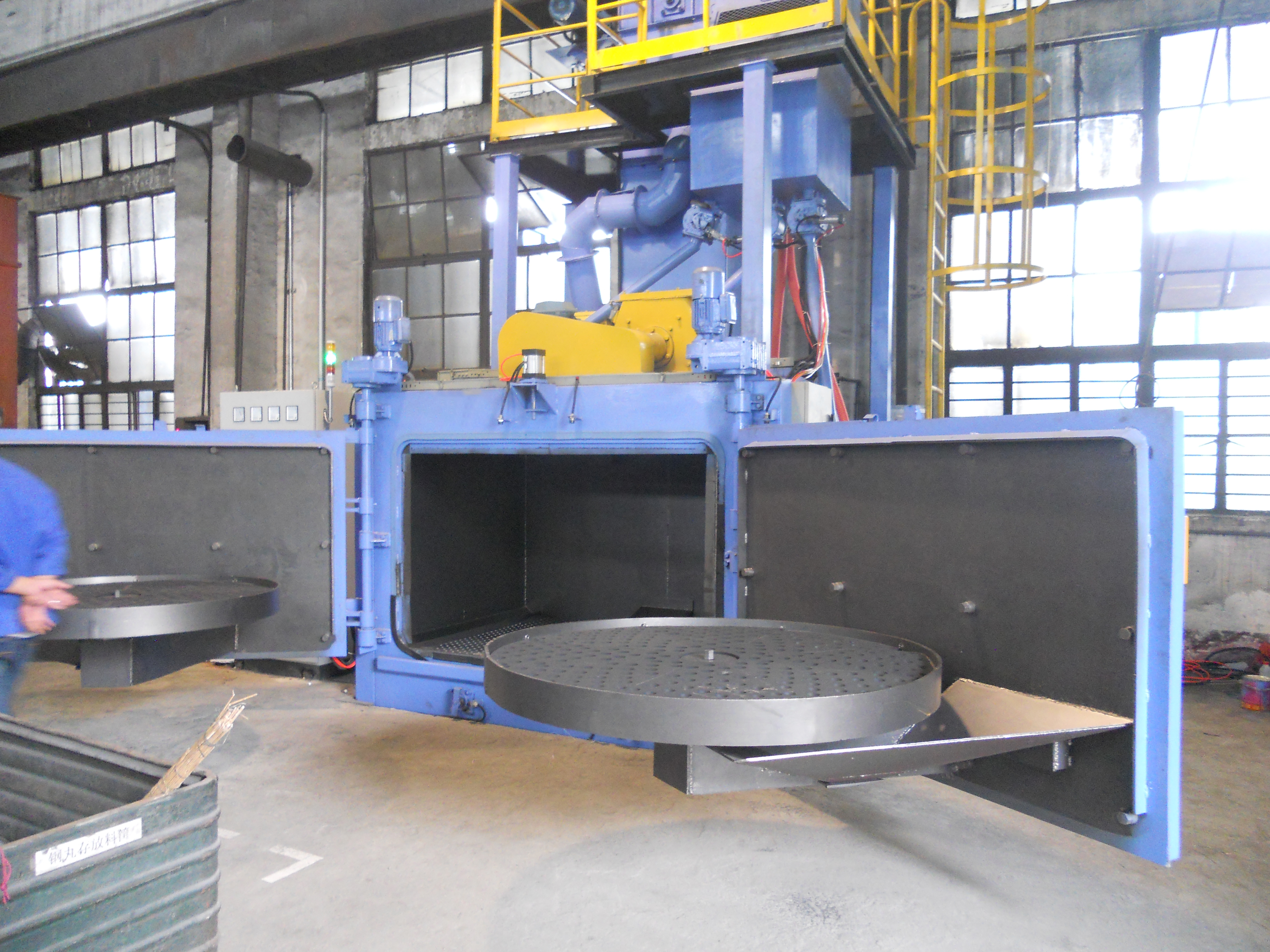

What configurations of table are available?expand_more

Single, double and multi-station rotary tables. A single table suits low volume and simple handling; double or multi-station designs let one station be loaded while another is blasting, which removes the loading pause from the cycle and raises effective throughput without increasing blast power.

How many blast wheels and how much power does it need?expand_more

Q3512 uses a single 11kW wheel with 200kg/min abrasive flow; Q3516 uses 2×7.5kW at 2×160kg/min; Q3525 uses 2×15kW at 2×250kg/min. Total power excluding the dust collector is 17.3kW, 26kW and 35.2kW respectively, with dust extraction air volume of 2,800, 3,600 and 5,200m³/h.

How much abrasive is needed to start up?expand_more

First loading is 400kg on Q3512, 600kg on Q3516 and 1,500kg on Q3525. Abrasive then circulates in a closed loop through elevator, separator and storage, so the initial charge is a one-off cost rather than a consumable. Elevator and separator capacity is 15, 25 and 30 t/h across the three models.

Does it need a foundation pit?expand_more

Q3512 and Q3516 install at floor level with no pit. Q3525 needs 1,616mm below floor level for the abrasive hopper and table drive. Pit dimensions and foundation loads are confirmed at the drawing approval stage, and the loading height of the table is set to match the handling equipment you already use.

Is it suitable for mixed batches of different parts?expand_more

Yes, within the weight and envelope limits. Because cleaning intensity is set by wheel speed and table rotation rather than by tumbling action, changing from one part to another is a parameter change rather than a fixture rebuild. For foundries and job shops running several part numbers per shift this is the practical advantage over dedicated machines.

What about dust, noise and the working environment?expand_more

The machine uses a fully sealed chamber with a complete shot circulation and dust removal system. Dust emission is low and noise is contained by the enclosure, so it can be installed in a normal workshop rather than a separate room. Recycled abrasive keeps consumable cost and waste down compared with open blasting.

How much can it be customized?expand_more

Table diameter, station count, chamber height, blast wheel count and power, and dust extraction capacity are configured to the workpiece mix and required output. Non-standard sizes and special fixtures for irregular parts are quoted per application.
