Custom Shot Blasting Machine:Roller Conveyor
Shot Blasting Machine

We are a National High-Tech Enterprise and a direct source manufacturer located in Qingdao, China. With over a decade of global success, we specialize in the R&D and production of high-efficiency shot blasting and sandblasting equipment.

We operate a 15,000 m² modern manufacturing facility with an annual capacity of 800 sets. Our team includes over 20 experienced engineers dedicated to innovation and quality.

We provide a comprehensive range of solutions, including: Shot Blasting (Hook type, Rubber belt, Through-feed, Overhead conveyor, Trolley, Mesh belt, and specialized types for cylinders, steel pipes, and road surfaces), Professional Sandblasting Booths, and Large-scale Lines (Steel plate pretreatment lines and environmental dust removal equipment).

Yes. We specialize in turnkey solutions designed using advanced 3D CAD systems. We can tailor the 3D modeling and workflow simulation to match your specific production line requirements.

Our equipment is widely trusted across heavy-duty sectors globally, including Foundry & Metallurgy (Casting cleaning, H-beam processing), Automotive & Shipbuilding (Auto parts, hull steel plates), Construction & Mining (Bridge components, heavy equipment maintenance), and Defense (Batch treatment for artillery shell cases).

We are ISO9001 quality management certified and CE European Safety certified. We also hold multiple National Utility Model Patents (e.g., Patent No. CN223130405U).

We provide 24/7 global technical support and lifelong maintenance for all equipment. We maintain a stable inventory of wear parts to ensure immediate shipment, minimizing your operational downtime.

Integrity First, Creating Excellence. By choosing us, you invest in reliability, fast delivery, and operational excellence backed by a decade of global success.

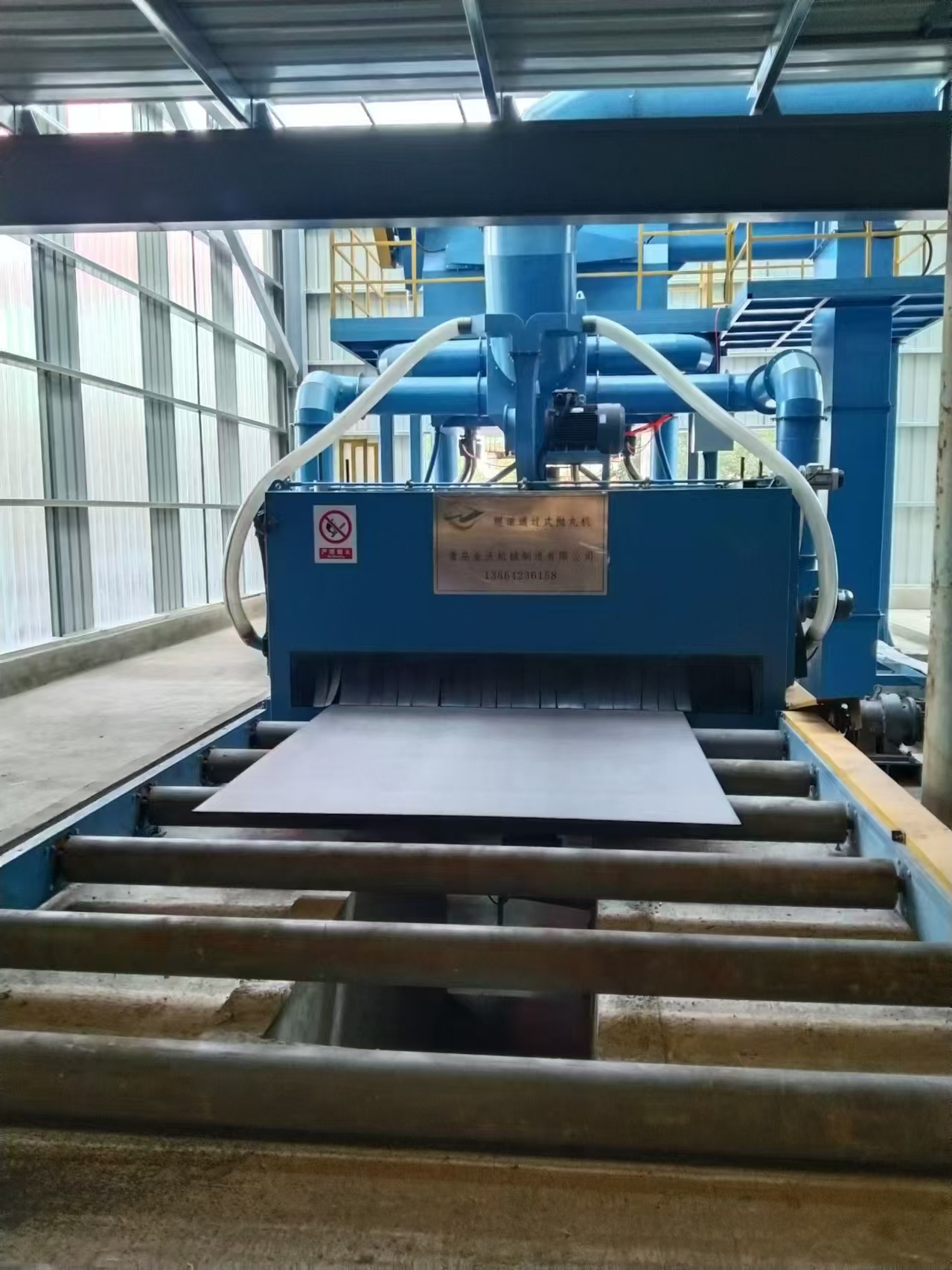

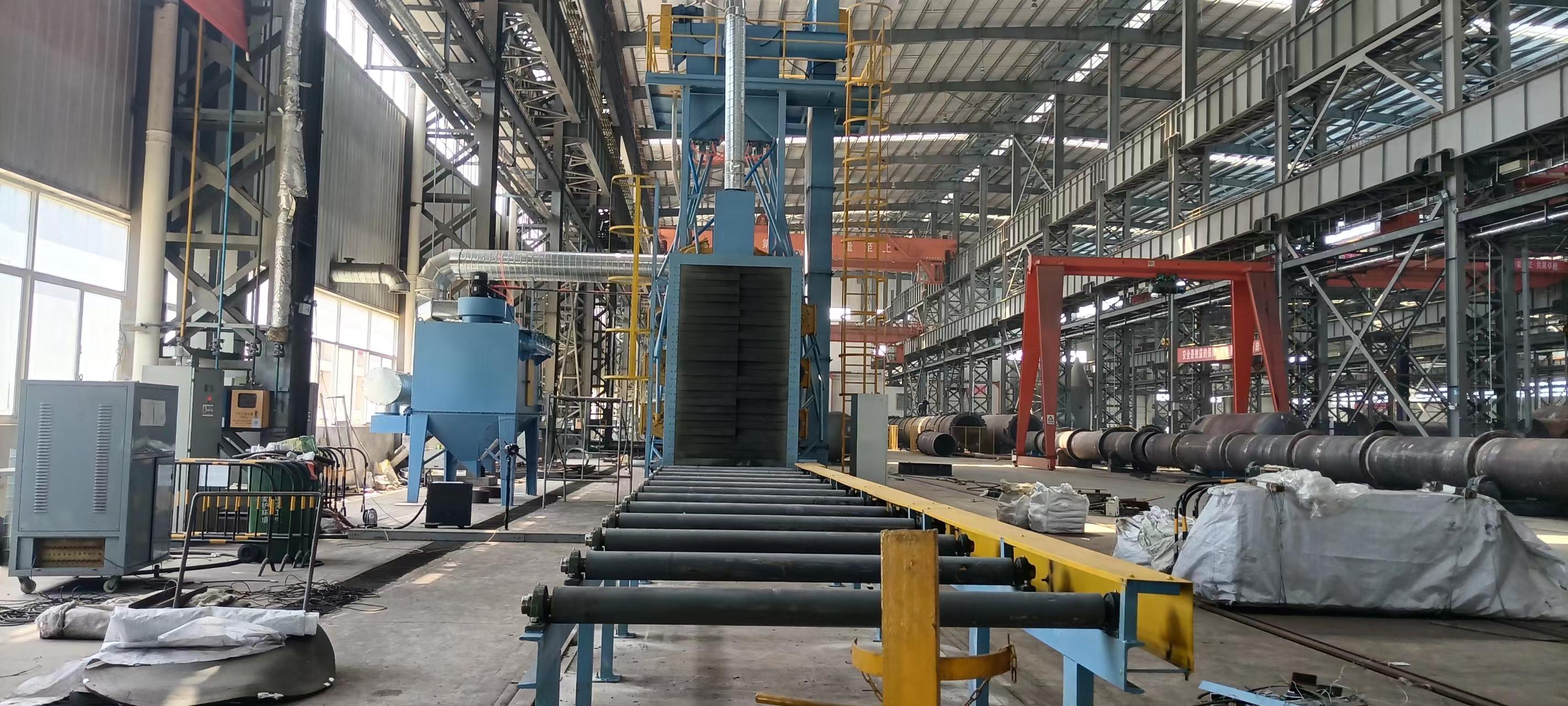

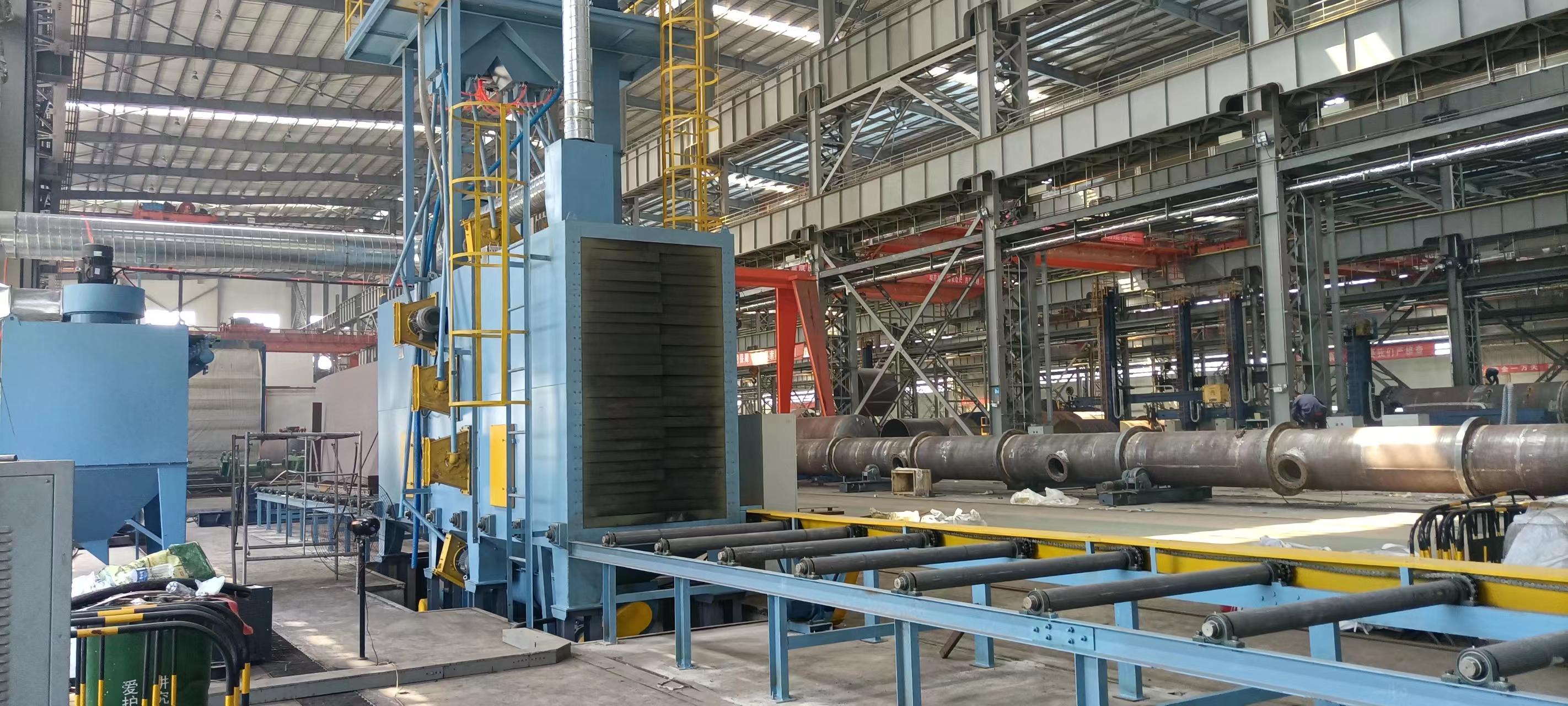

As a Global Source Factory, our roller conveyor shot blasting machines use 3D dynamic simulation to precisely calibrate blast wheel angles, ensuring all surfaces of H-beams stably meet Sa2.5 to Sa3 international standards. We Support Customization according to Drawings, configuring 4-24 high-efficiency blast wheels based on your maximum H-beam cross-section to eliminate cleaning blind spots.

For wind power components, we use patent-level high-efficiency blast wheels (Patent CN223130405U). As a Global Source Factory, we understand the strict anti-corrosion requirements of the wind power industry, so our equipment integrates multi-angle blasting technology. We Support Customization according to Drawings to perfectly adapt to different diameters of tower flanges, ensuring uniform surface roughness for high-level anti-corrosion coating adhesion.

Yes, our entire range of equipment has passed CE European safety certification and ISO9001 quality management system certification. As a Global Source Factory, our electrical systems and mechanical safeguards fully comply with European industrial safety standards. We Support Customization according to Drawings, providing automated deburring integrated solutions that meet EU standards for automotive die-casting parts customers.

Absolutely. As a Global Source Factory, we equip industrial-grade environmental dust collection systems as standard, with airflow capacities of 22000-38000 m3/h, stably controlling dust emissions below 10mg/m3. We Support Customization according to Drawings, optimizing specific filter cartridges and air ducts based on your local environmental regulations and plant ventilation conditions.

Yes, it is compatible. As a Global Source Factory, our electrical control cabinets support various international voltage standards including 220V, 380V, 415V, and 480V, integrated with Siemens or Mitsubishi PLCs. We Support Customization according to Drawings, allowing for specialized selection and debugging of electrical components based on the specific grid environment of heavy mining equipment maintenance workshops.

It can be seamlessly integrated. As a Global Source Factory, we have an R&D team of 22 professional technicians proficient in various industrial automation communication protocols. We Support Customization according to Drawings, enabling the shot blasting machine's control program to connect directly to the shipyard's Siemens or Mitsubishi main control network for fully automated online operation.

No problem at all. As a Global Source Factory, our steel pipe outer wall shot blasting machines are specially designed for pipe anti-corrosion pretreatment, precisely controlling steel shot impact force to achieve specific roughness (e.g., Rz 40-75µm). We Support Customization according to Drawings, providing surface treatment solutions meeting API standards for both small-diameter seamless pipes and large-diameter spiral pipes.

As a Global Source Factory, we precisely control the blast wheel projection speed and conveyor frequency via a variable frequency stepless speed control system, using stainless steel or aluminum shots for flexible cleaning. We Support Customization according to Drawings, designing exclusive fixtures and blasting parameters for thin-walled die-castings to ensure deburring without damaging the dimensional accuracy of the workpiece.

Yes, it can. As a Global Source Factory, we have deep expertise in shot peening technology. Our equipment features high-precision abrasive flow control valves and dynamic monitoring systems to ensure stable kinetic energy output. We Support Customization according to Drawings, customizing closed-loop controlled shot peening solutions based on the material and fatigue life requirements of track shoes, perfectly meeting stress test standards.

Yes. As a Global Source Factory, we strictly implement the ISO9001 quality management system. All Mn13 high-manganese steel liners come with authoritative material test reports, ensuring a lifespan of up to 4000 hours. We Support Customization according to Drawings; for special blast zones with extreme wear, we can thicken the plates or replace them with special alloy wear blocks to ensure long-term operation.

As a Global Source Factory, we utilize 3D CAD design systems to develop overhead conveyor or robotic fixed-point shot blasting machines specifically for engine blocks. We Support Customization according to Drawings, using multi-axis turnover mechanisms combined with directional high-pressure nozzles to accurately shoot steel shots into complex cavities, thoroughly removing stuck sand and scale to meet top international casting cleaning standards.

Fully complies. Jinwo Machinery is a certified National High-Tech Enterprise (2024). As a Global Source Factory, our self-developed 'High-efficiency Shot Blasting Machine' patent significantly improves the conversion rate from electrical to kinetic energy. We Support Customization according to Drawings, optimizing the total installed power (90kW-360kW) while meeting Sa2.5 cleaning grades to help customers maximize energy savings and emission reductions.

Absolutely. As a Global Source Factory, our Q69 series roller conveyor shot blasting machine chamber height standard reaches 4000mm, and we fully possess the design and manufacturing capability for ultra-large non-standard equipment. We Support Customization according to Drawings, tailoring giant equipment with feed-in sizes exceeding 4200mm*4000mm to perfectly accommodate the through-feed cleaning of ultra-large box beams.

Yes, it can be integrated. As a Global Source Factory, we provide turnkey projects, not only manufacturing the main shot blasting machine but also specializing in whole-line automation integration. We Support Customization according to Drawings, seamlessly integrating custom automatic loading and unloading systems based on your foundry line's rhythm and workpiece weight to achieve unmanned continuous production.

Absolutely. As a Global Source Factory, our equipment features a dual variable frequency stepless speed control design. The conveying speed supports a wide range of 0.5-5m/min, and the shot blasting volume is precisely controlled via pneumatic valves. We Support Customization according to Drawings, ensuring 3mm thin plates do not deform while 100mm thick plates are thoroughly descaled.

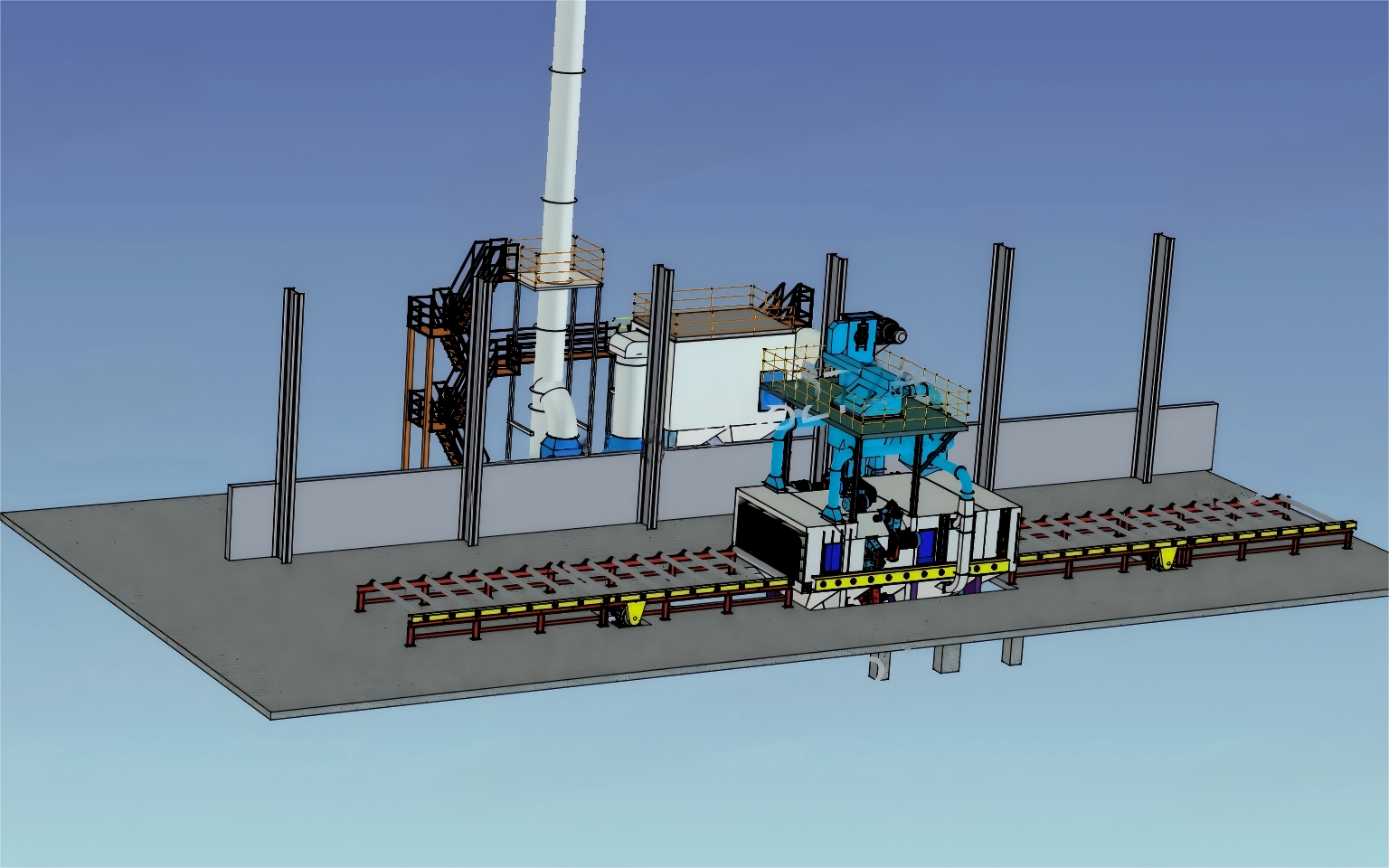

As a Global Source Factory, we import your 3D workpiece models into our CAD simulation system for projection trajectory simulation. We Support Customization according to Drawings, scientifically matching 4 to 24 or more high-efficiency blast wheels and precisely setting installation angles to ensure 360° dead-zone-free uniform cleaning for complex welds and internal corners.

For ultra-heavy workpieces, as a Global Source Factory, we recommend and provide heavy-duty trolley-type shot blasting machine solutions. We Support Customization according to Drawings; the trolley track load capacity can be customized to tens or even hundreds of tons. Combined with an automatic rotating table, it easily solves the safe handling and efficient cleaning of heavy mining machinery shells.

As a Global Source Factory, we have developed rubber belt shot blasting machines specifically for small precision parts, using high-wear-resistant rubber belts for flexible tumbling. We Support Customization according to Drawings, perfectly protecting fastener thread accuracy while efficiently removing scale in batches by customizing micro-hole belt leakage and precisely calibrating low-speed projection force.

We certainly can. As a Global Source Factory, large sandblasting and painting booths are among our core businesses. We Support Customization according to Drawings; no matter the size of your engineering vehicles, we can provide a complete custom sandblasting booth turnkey project, including honeycomb floor pneumatic or mechanical recovery systems, environmental dust collection, and lighting systems.

Yes, it can be widened. As a Global Source Factory, we not only produce standard-width road shot blasters but also possess strong non-standard R&D capabilities. We Support Customization according to Drawings, customizing double-blast-wheel or widened equipment based on your single-pass working width requirements for bridge decks or airport runways, significantly improving the texturing efficiency of large concrete surfaces.

As a Global Source Factory, we have completely solved this industry pain point through an adjustable roller spacing design. We Support Customization according to Drawings, flexibly shortening the roller center distance or adding transition support plates based on the minimum support span and cross-section size of your workpieces, ensuring short and narrow profiles are conveyed smoothly in the chamber without jamming.

It can be perfectly connected. As a Global Source Factory, our equipment reserves automation line interfaces right from the design stage. We Support Customization according to Drawings, customizing the output roller height, speed, and sweeping/blowing devices to ensure no residual steel shots or dust on the workpiece surface, allowing direct entry into your painting and drying line for integrated pretreatment and coating.

No problem at all. As a Global Source Factory, our engineering team will conduct on-site inspections or space planning based on your factory CAD drawings. We Support Customization according to Drawings, allowing irregular or folded layout designs for the elevator, separator, dust collector, and air ducts to perfectly adapt to limited or irregular non-standard factory spaces.

As a Global Source Factory, we use closed-loop recovery and multi-stage precision separation technology, achieving an abrasive utilization rate over 95%, which reduces abrasive loss by 40% compared to standard equipment. We Support Customization according to Drawings to optimize separator airflow. This alone can save you tens to hundreds of thousands in steel shot procurement costs annually. The overall equipment ROI is extremely high, typically recovering the investment within 12-18 months.

As a Global Source Factory, our blast wheel blades are made of special wear-resistant alloys with a lifespan of up to 600 hours, and distributors up to 3000 hours. We Support Customization according to Drawings and utilize a through-bolt quick-release design. Replacing blades on a single blast wheel takes only a dozen minutes, minimizing downtime maintenance and ensuring your efficient continuous production.

They are highly robust and durable. As a Global Source Factory, the rollers of our heavy-duty models use special seamless steel pipes and high-strength bearing housings, with a rated concentrated load of up to 4t/m and peak impact resistance of 5t/m. We Support Customization according to Drawings; for extremely heavy castings and forgings, we can customize solid forged roller shafts or add buffer sleeves to completely eliminate the risk of roller breakage or deformation.

As a Global Source Factory, we achieve energy savings through intelligent PLC control systems. When no workpiece is passing, the system automatically downshifts or idles the blast wheels and closes the abrasive gates. We Support Customization according to Drawings, matching you with our self-developed high-efficiency shot blasting patent technology (CN223130405U), which saves about 20% energy compared to traditional equipment for the same cleaning effect.

As a Global Source Factory, we know impurities are the main cause of wear. Our multi-stage separation system extracts over 99% of molding sand and dust. High-purity abrasives not only improve cleaning efficiency but also prevent impurities from scratching blades and liners. We Support Customization according to Drawings, extending wear part lifespan by another 30% through custom high-efficiency separators, drastically reducing replacement costs.

As a Global Source Factory, we design multi-stage sweeping and blowing systems at the equipment exit. We Support Customization according to Drawings; for workpieces with deep cavities or blind holes, we can customize high-pressure air nozzle arrays or automatic turnover shot-pouring mechanisms to ensure 100% of the steel shots carried out are recovered into the system, preventing jamming and greatly reducing shot waste.

As a Global Source Factory, we provide one-stop turnkey services including operation training. The equipment uses a foolproof PLC touch interface with one-button start/stop, greatly lowering the operation threshold. We Support Customization according to Drawings, and based on the custom model's features, we provide your workers with detailed training on safe operation, daily inspection, and troubleshooting, reducing human-induced failure rates from the source.

As a Global Source Factory, we have a 10,000㎡ modern facility and a strong capacity of 800 sets annually, ensuring very fast delivery for standard models. We Support Customization according to Drawings; for large non-standard custom lines, the turnkey delivery from proposal confirmation, 3D design, and manufacturing to on-site installation and commissioning is typically completed within 45-60 days, helping you ramp up production quickly.

It can absolutely be fulfilled. As a Global Source Factory, the hot zones of our shot blasting chambers use rolled Mn13 high-manganese steel liners. This material has work-hardening properties, becoming harder the more it is impacted by steel shots. We Support Customization according to Drawings; for three-shift heavy-load lines, we optimize shot rebound trajectories via simulation to avoid localized excessive wear on liners, easily achieving an ultra-long lifespan of over 4000 hours.

The biggest advantage is the absence of middleman markups and underlying technical guarantees. As a Global Source Factory, we have 22 R&D personnel and multiple national patents, directly responsible for equipment quality and after-sales. We Support Customization according to Drawings, able to modify mechanical structures and underlying PLC code from the source, whereas trading companies only resell standard machines and cannot provide deep technical customization and lifelong warranty.

Absolutely guaranteed. As a Global Source Factory, we retain detailed BOMs and 3D CAD drawing archives for every machine that leaves our factory. We Support Customization according to Drawings. Even for 10-year-old non-standard models, we can retrieve the drawings at any time to reproduce or provide fully compatible upgraded wear parts, offering true lifelong parts supply services.

Of course. As a Global Source Factory, we have a spacious 10,000㎡ modern testing workshop. We Support Customization according to Drawings. Once custom equipment is assembled, we invite overseas customers to conduct no-load and load testing (FAT) on-site or via high-definition video calls, ensuring all shot blasting and dust collection indicators are met before packing and shipping.

Very welcome. As a Global Source Factory, we have a strong production capacity of 800 sets annually and a strict ISO9001 quality control system, making us highly suitable as a manufacturing base for overseas brands. We Support Customization according to Drawings, providing deep OEM/ODM services based on the industrial standards, appearance preferences, and brand VI of the distributor's country.

Yes. As a Global Source Factory, we not only provide detailed English installation manuals and 3D assembly videos but also have rich experience in overseas turnkey projects. We Support Customization according to Drawings. For highly complex ultra-large non-standard lines, we can dispatch experienced engineering teams to your overseas site for professional installation guidance and technical training.

Yes. As a Global Source Factory, our 22 professional technicians all use advanced 3D CAD design systems. We Support Customization according to Drawings. Before official production, we place the 3D model of the shot blasting machine into your factory's digital model for interference checking and workflow simulation, ensuring the layout is 100% reasonable before cutting materials for production.

Extremely fast response. As a Global Source Factory, we maintain a large spot inventory of standard blast wheel assemblies and various wear parts year-round. We Support Customization according to Drawings. Even for non-standard custom blast wheels, relying on the flexible processing capability of our 10,000㎡ facility, we can expedite production in a very short time and ship directly to your site via international air express, minimizing downtime losses.

As a Global Source Factory, we provide industry-leading manufacturer direct warranty policies. The entire machine (excluding wear parts) typically enjoys a 12-month comprehensive warranty and lifelong technical support. We Support Customization according to Drawings. Since it is independently developed and produced, we bypass middlemen for any quality issues during the warranty period, directly providing free replacement parts or remote/on-site technical interventions.

As a Global Source Factory, the core of our patent (CN223130405U) lies in optimizing the fluid dynamics design of the impeller and the opening angle of the control cage, increasing the initial projection speed of steel shots by 15% and making the impact density more uniform. We Support Customization according to Drawings, applying this core technology to all custom models, ensuring our equipment's cleaning efficiency is over 20% higher than ordinary manufacturers at the same power.

Fully compliant. As a Global Source Factory, our shot blasting equipment strictly aligns with international surface treatment specifications. We Support Customization according to Drawings. For bridge main girders, we configure high-power blast wheels and reasonable projection angles to ensure scale and rust on the steel surface are thoroughly removed, stably reaching ISO 8501-1 Sa2.5 or even Sa3 requirements, providing optimal adhesion for subsequent anti-corrosion paint.

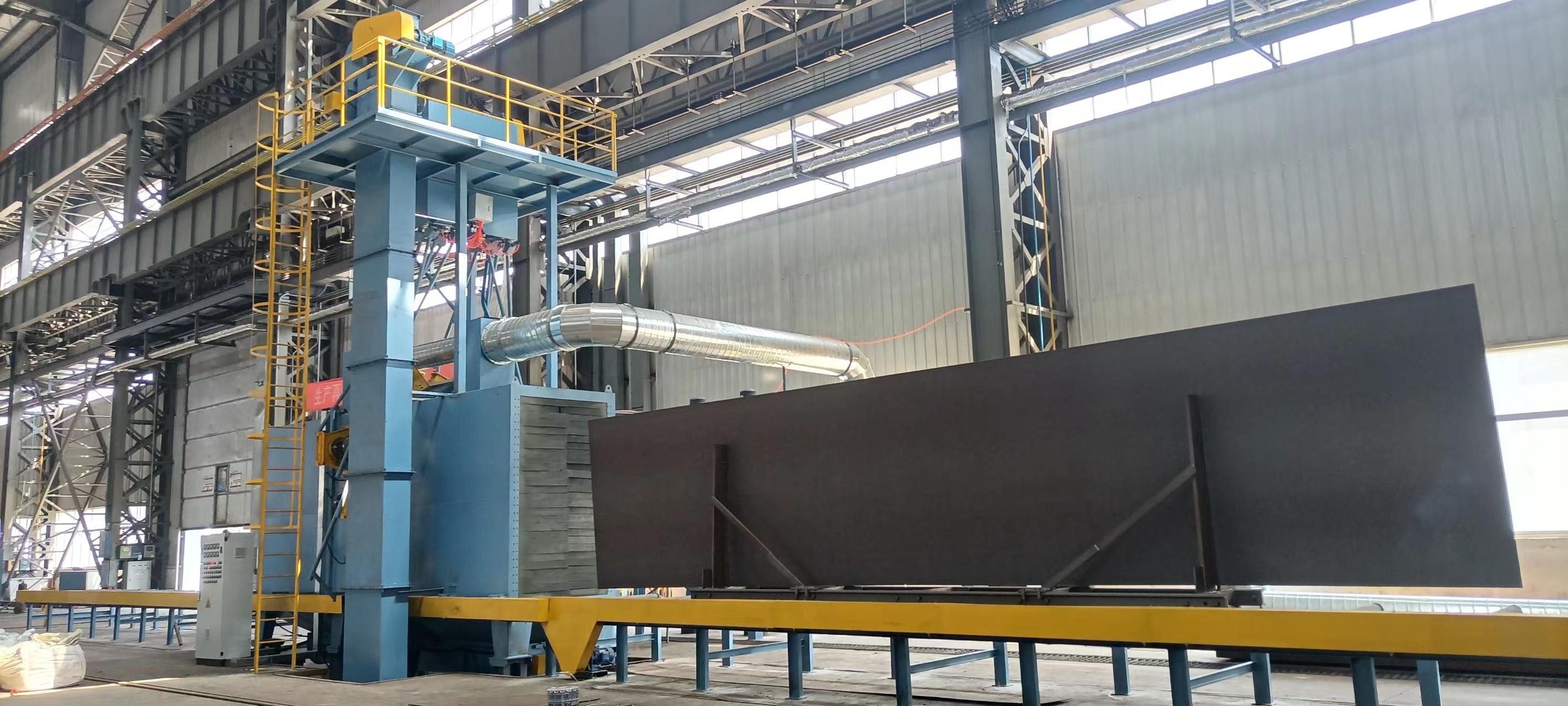

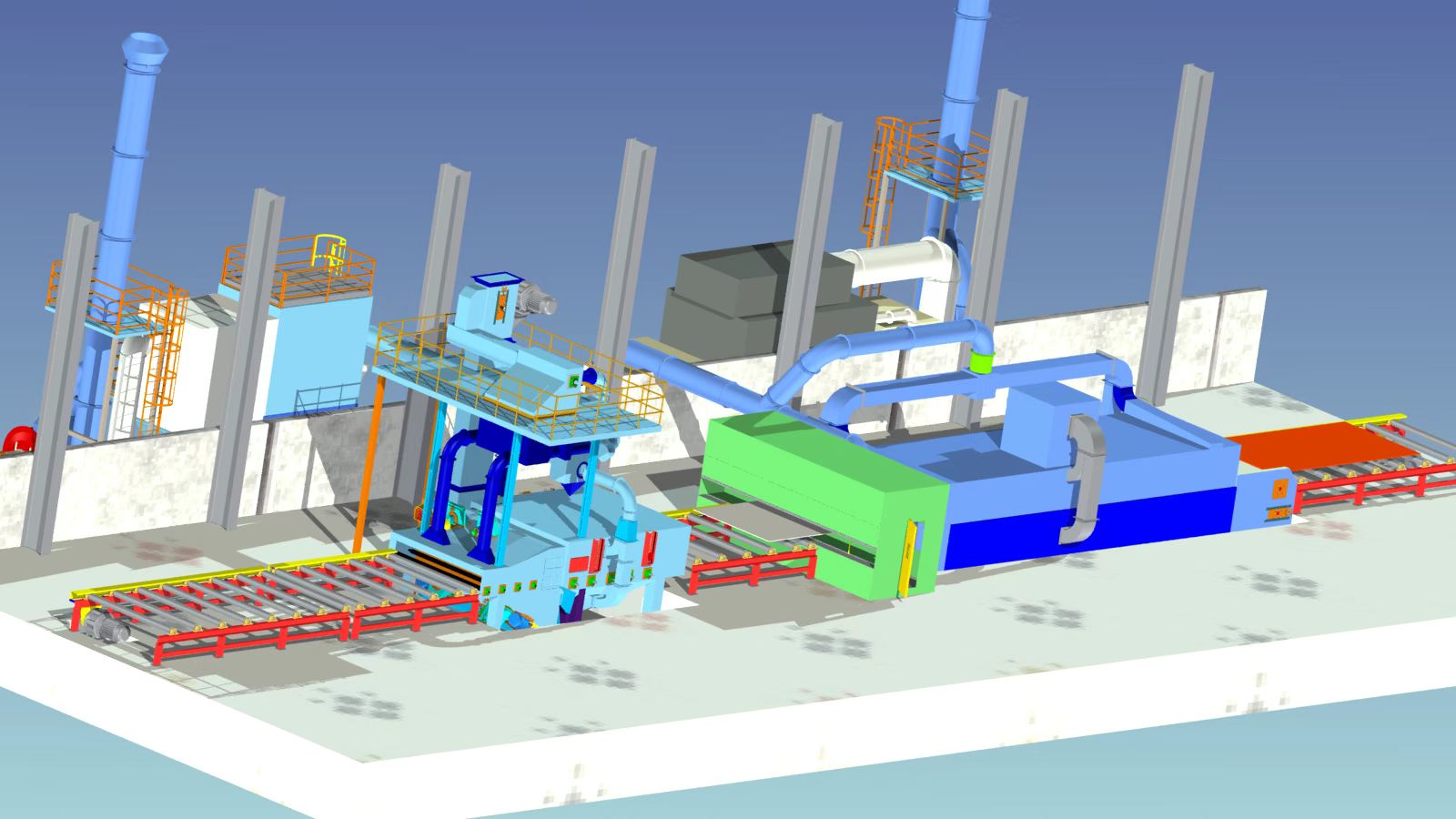

As a Global Source Factory, we have extensive experience in large steel plate pretreatment lines, with standard effective cleaning widths up to 4000mm. We Support Customization according to Drawings. If your hull steel plates are wider, we can break conventions and customize ultra-large lines of 4500mm or wider, accompanied by corresponding wide sweeping brushes and high-pressure blowing systems to ensure consistent pretreatment quality across the entire plate.

They are not prone to clogging and are extremely easy to maintain. As a Global Source Factory, our environmental dust collection equipment comes standard with a pulse back-blowing ash cleaning system. The PLC automatically injects high-pressure airflow into the cartridges at set intervals to shake off exterior dust. We Support Customization according to Drawings, customizing PTFE-coated flame-retardant cartridges based on the dust characteristics of your workpieces (e.g., sticky dust), eliminating the hassle of frequent manual cleaning and significantly increasing effective production time.

As a Global Source Factory, 'turnkey' means we handle everything from requirement research, 3D design, equipment manufacturing, transnational logistics assistance, on-site installation and commissioning, to operation training. We Support Customization according to Drawings. Customers only need to prepare the factory foundation (we provide foundation drawings in advance), power and air sources, and the workpieces to be processed. After successful power-on testing, you simply 'turn the key' to start production.

Absolutely. As a Global Source Factory, our through-feed shot blasting machines are specially designed for heavy scale. The high projection speed instantly shatters and strips stubborn scale, revealing the base metal. We Support Customization according to Drawings, adjusting roller speed and shot volume to ensure the H-beam surface cleanliness fully meets the strict prerequisite surface requirements for ultrasonic or magnetic particle Non-Destructive Testing (NDT).

It can adapt perfectly. As a Global Source Factory, we are proficient in docking various stepping, continuous, and power-and-free overhead chain systems. We Support Customization according to Drawings, non-standard customizing the top sealing labyrinth structure and rotation mechanism of the blasting chamber based on your existing track elevation, hanger spacing, and load capacity to achieve seamless integration of new equipment with old lines.

For high-sand-content conditions, as a Global Source Factory, we add magnetic separation drums or vibrating screen grading systems before the conventional air wash separator. We Support Customization according to Drawings, customizing large-capacity shot-sand separation systems for you to first screen out large sand lumps, then separate steel shots from non-magnetic sand via magnetic separation, completely solving separator overload and ensuring continuous efficient foundry operation.

This national-level qualification is an official endorsement of R&D strength. As a Global Source Factory, it means we are not just manufacturers but technology innovators, investing heavily in R&D annually (e.g., 3D CAD systems and a 22-person tech team). We Support Customization according to Drawings, which guarantees that we provide you not with outdated copycat machines, but with modern surface treatment solutions featuring high technical added value, high efficiency, and low energy consumption.
